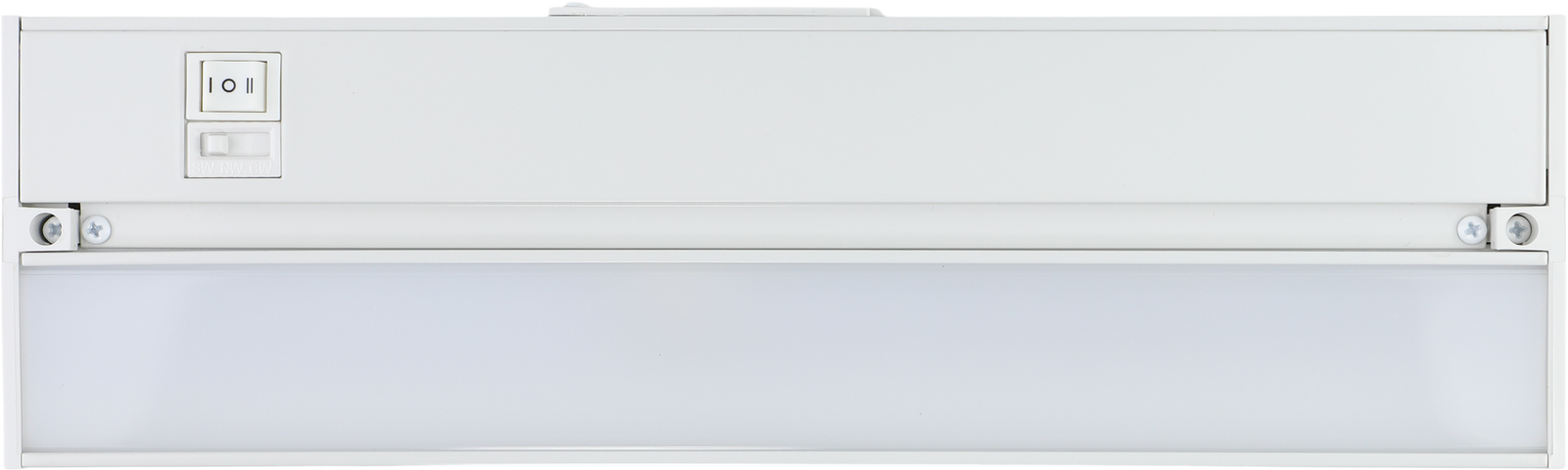

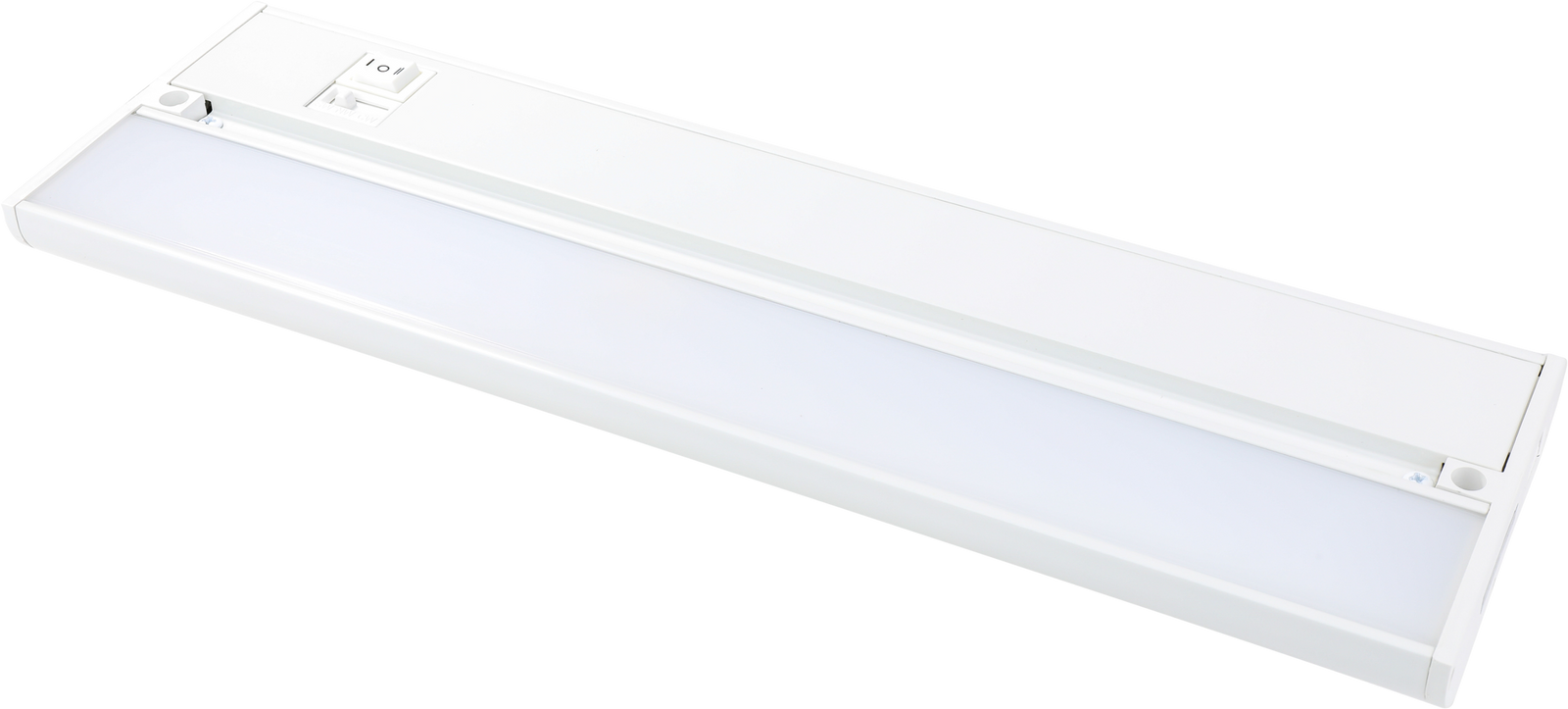

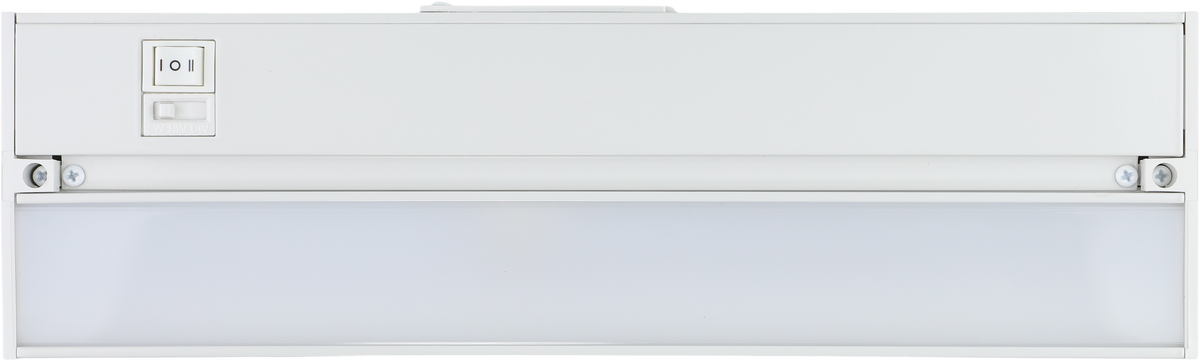

22" White

NO TRANSFORMER NEEDED | WORKS ON LINE VOLTAGE

Modular / Link-able LED under-cabinet fixtures with dimmable 2835 LEDs, low profile housing, screws pre-installed for ease of installation.

Installation Instructions: Click here
Knock-In Locations: Click here

Features
• Knock-In connection via romex or plug in connectors with
   linking cables allows for easy and diverse installation
• Sized to fit under standard cabinets.
      Lengths:  9” , 14” , 22” , 32”
• Low heat generation
•  50,000 hour life
• Special lens for even light distribution

Lumen Output and Power Consumption
9" LED    - 220 Lumens - 4 Watts
14" LED  - 320 Lumens - 7 Watts
22" LED  - 520 Lumens - 11 Watts
32" LED  - 760 Lumens - 15 Watts

Specifications
Input Voltage: 120V AC, 60Hz
Color Temperature Selectable: 3,000K -or- 4,000K -or- 5,000K
CRI: 90+
Maximum Run: 400 watts
Beam Angle 120 deg.
Dimming: Triac and low voltage electronic
Housing: Extruded aluminum
Lens: Full length extruded acryclic
Rating: ETL Listed, dry location
Dimensions: 4-1/16" W  x  1" H  x  <Length>
Power Input: Hardwired, Modular or plug-in
Mounting: Through-housing screws included and pre-installed for fast and easy installation
Linking: Via inline connector, butt connector or jumpers
LED Type: 2835 SMD
Rate Life: 50,000 hours
